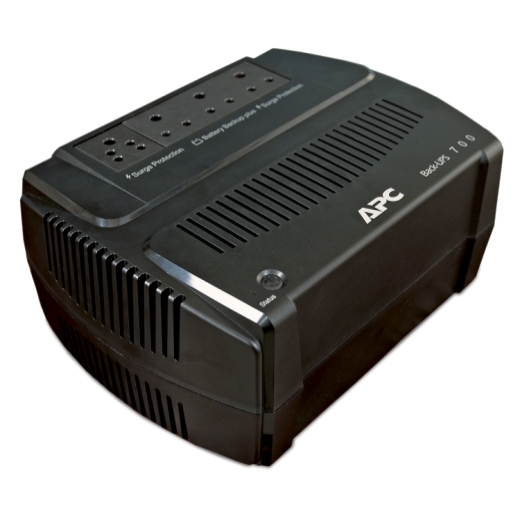

BE700Y-IND Features
Main Features
- Audible alarms
Provides notification of changing utility power and UPS power conditions
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
- Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Cold-start capable
Provides temporary battery power when the utility power is out.
- LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
- USB connectivity
USB compatibility and connectivity ensure quick and easy installation of the free PowerChute Personal Edition Software.
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Main Benefits
Manageability
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Marketing Features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Protection
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Technical Specifications
Main Input Voltage | 230 V |
---|---|
rated power in W | 420 W |
rated power in VA | 700 VA |
nb of power socket outlets | 3 India 3-pin 6A 1 India 3-pin 6A surge |
cable length | 1.00 m |
number of cables | 1 |
battery type | Lead-acid battery |
provided equipment | User manual USB cable warranty card |
---|---|
Number of power module free slots | 0 |
Number of power module filled slots | 0 |
redundant | No |
height | 13 cm |
---|---|
width | 22 cm |
depth | 29 cm |
net weight | 7.8 kg |
mounting preference | No preference |
mounting mode | Not rack-mountable |
two post mountable | 0 |
USB compatible | No |
network frequency | 50 Hz +/- 3 Hz |
---|---|
plug standard | India 3-pin 6A |
Maximum configurable power in W | 420 W |
---|---|
output frequency | 47...63 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
UPS type | Line interactive |
Waveform Type | Stepped approximation to a sinewave |
efficiency | 95 % (full load) |
Maximum configurable power in VA | 700 VA |
product certifications | BIS |
---|
ambient air temperature for operation | 0…40 °C |
---|---|
relative humidity | 0…95 % |
operating altitude | 0...10000 ft |
ambient air temperature for storage | -5…45 °C |
storage Relative Humidity | 0…95 % |
acoustic level | 45 dBA |
heat dissipation | 42.68 Btu/h |
number of battery filled slots | 0 |
---|---|
number of battery free slots | 0 |
Battery recharge time | 6 h |
number of battery replacement quantity | 1 |
battery charger power | 18 W rated |
Battery power in VAH | 108 VAh runtime |
battery life | 2…4 year(s) |
extended runtime | 0 |
control panel | LED status display with on line : on battery : replace battery and overload indicators |
---|---|
alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge energy rate | 160 J |
---|---|
noise suppression | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Package 1 Weight | 9 kg |
---|---|
Package 1 Height | 17 cm |
Package 1 width | 27 cm |
Package 1 Length | 41 cm |
Warranty | 2 years repair or replace |
---|
