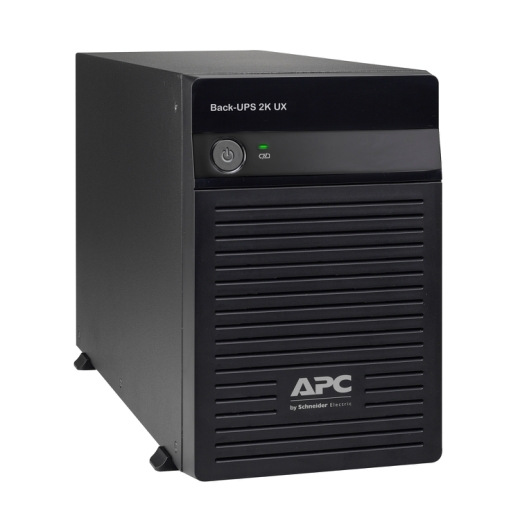

BX2000UXI Features & Benefits
Main Features
Manageability
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Marketing features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Protection
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Technical Specifications
| Main Input Voltage | 230 V |
|---|---|
| rated power in W | 1200 W |
| rated power in VA | 2000 VA |
| output connector type | Hard wire 3-wire (H N + E) 1 |
| cable length | 1.5 m |
| provided equipment | User manual |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| redundant | No |
| height | 22 cm |
|---|---|
| width | 14.5 cm |
| depth | 39.2 cm |
| net weight | 13.4 kg |
| mounting preference | No preference |
| mounting mode | Not rack-mountable |
| two post mountable | 0 |
| USB compatible | No |
| network frequency | 40...70 Hz |
|---|---|
| plug standard | India 3-pin 16A |
| Maximum configurable power in W | 1200 W |
|---|---|
| output frequency | 50 Hz +/- 1 Hz unsynchronised |
| UPS type | Line interactive |
| Waveform Type | Stepped approximation to a sinewave |
| efficiency | 92 % (full load) 90 % (half load) |
| Maximum configurable power in VA | 2000 VA |
| Transfer time | 8 ms typical : 12 ms maximum |
| product certifications | BIS |
|---|
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % |
| operating altitude | 0...3000 ft |
| ambient air temperature for storage | 0…45 °C |
| storage Relative Humidity | Non-condensing 0…95 % |
| storage altitude | 0.00…914.40 m |
| acoustic level | 50 dBA |
| number of battery filled slots | 0 |
|---|---|
| number of battery free slots | 0 |
| Battery power in VAH | 0 VAh runtime |
| extended runtime | 0 |
| control panel | LED Status display with on line : on battery |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 14.3 kg |
| Package 1 Height | 33.5 cm |
| Package 1 width | 23.5 cm |
| Package 1 Length | 47.7 cm |
| Warranty | 2 years repair or replace |
|---|
