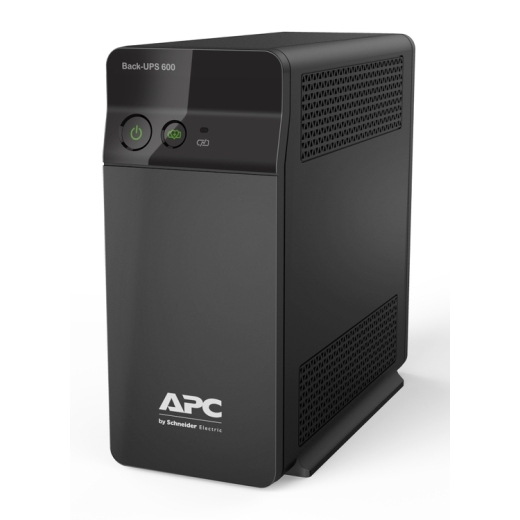

BX600C-IN Features & Benefits
Main Features
- Audible alarms
Provides notification of changing utility power and UPS power conditions
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Battery charging indicator
Lets you know when your battery is charging and when it is fully charged.
- Battery Saver
Extends battery life by preventing unnecessary discharges while the UPS is on battery.
- Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Fast battery charging capability
Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge, and provides back feed protection.
- Generator compatibility
Allows you to recharge your battery while on generator power.
- LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Main Benefits
Manageability
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Marketing features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Protection
Battery and surge-protected outlets
Back up and protect your hardware and data during power outages, surges, and spikes.
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Technical Specification
| Main Input Voltage | 230 V |
|---|---|
| rated power in W | 360 W |
| rated power in VA | 600 VA |
| nb of power socket outlets | 3 India 2/3-pin 6A |
| cable length | 1.22 m |
| number of cables | 1 |
| battery type | Lead-acid battery |
| provided equipment | User manual |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| redundant | No |
| colour | Black |
|---|---|
| height | 21.8 cm |
| width | 10.7 cm |
| depth | 23.7 cm |
| net weight | 4.7 kg |
| mounting preference | No preference |
| mounting mode | Not rack-mountable |
| two post mountable | 0 |
| USB compatible | No |
| network frequency | 45...65 Hz auto-sensing |
|---|---|
| plug standard | India 3-pin 6A |
| input voltage limits | 145...290 V |
| Maximum configurable power in W | 360 W |
|---|---|
| output frequency | 50 Hz sync to mains |
| UPS type | Line interactive |
| Waveform Type | Stepped approximation to a sinewave |
| full load runtime | 360 W |
| Maximum configurable power in VA | 600 VA |
| Transfer time | 10 ms typical : 12 ms maximum |
| product certifications | BIS |
|---|
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % |
| operating altitude | 0...3000 m |
| ambient air temperature for storage | -15…45 °C |
| storage Relative Humidity | 0…95 % |
| storage altitude | 0…15000 m |
| acoustic level | 45 dBA |
| number of battery filled slots | 0 |
|---|---|
| number of battery free slots | 0 |
| Battery recharge time | 6 h |
| number of battery replacement quantity | 1 |
| battery voltage | 12 V |
| Battery power in VAH | 53 VAh runtime |
| Battery graph comments | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| extended runtime | 0 |
| control panel | LED status display with on line : on battery : replace battery and building wiring fault |
|---|---|
| alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 255 J |
|---|
| Package 1 Weight | 5.2 kg |
|---|---|
| Package 1 Height | 29.5 cm |
| Package 1 width | 16.5 cm |
| Package 1 Length | 31 cm |
| Warranty | 2 years repair or replace |
|---|
