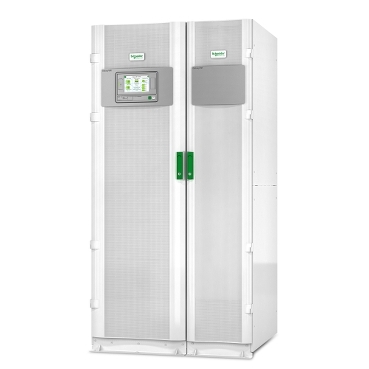

Key Features
Integration
Schneider Electric StruxureWareTM software applications and suites
Electrical network earthing systems
Facilities infrastructure
Seismic certified
Monitoring systems — BMS, modbus, etc.
Energy storage flexibility
Traditional (VRLA) and modular battery offer
Common battery available in standard
Short and long backup times
Selectable charging modes
Integration into your electrical network
Wide input voltage and frequency ranges
Genset compliant with adaptive ramp-in
Integrated parallel capability up to five UPS units
Built-in integrated and tested backfeed protection
Integration into your facility infrastructure
Compact footprint
Back-to-the-wall installation
Operates at 40 o C continuously without de-rating
Embedded seismic certified to OSHPD, IBC2012 and CBC2013 to Sds=2.02 g
Low audible noise levels
Replaceable dust filter for harsh environments
Configurable input/output relays
Top and bottom cable entry
Parallel capability to increase multiple UPS systems for capacity or redundancy
Ability to add UPSs in a parallel configuration without the need to transfer the load to bypass
Cold start: capability to start the UPS on battery without mains power present
External synchronization capability
High-efficiency energy and cost savings
ECOnversion mode :- Ultrahigh efficiency up to 99%
Double conversion mode :- Up to 96.5% efficiency in double conversion online mode even at low load levels,
ECO mode :- Up to 99.5% efficiency
Energy storage options
Traditional (VRLA) battery
Modular battery
Parallel UPS configurations can be connected to a common battery
Flywheel and lithium ion compatibility
Monitoring
7-inch, color touch-screen display
Integrated network management capability for easy access to the network
Integrated battery monitoring capability included for modular battery offer
Modbus (SCADA and ION-E) capability
Customizable dry contacts and relays
Comprehensive portfolio of services
On-site warranty extension service
Remote monitoring service (RMS) :- Trained technicians provide secure 24-hour monitoring of your physical infrastructure to diagnose and resolve events before they become critical through web based EcoStructure Software.
Preventive maintenance
Technical Specification
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| rated power in W | 180 kW |
| rated power in VA | 200 kVA |
| output connector type | Hard wire 4-wire (3P + E) 1 Hard wire 5-wire (3P + N + E) 1 |
| battery type | External battery system |
| provided equipment | Built-in modbus protocol adapter Dust filter Installation guide Integrated network management Seismic compliance Top and bottom cable entry |
| bypass voltage tolerance | +/- 10 % settable from +/- 4/6/8 and 10 % |
|---|---|
| max bypass input current | 289 A |
| bypass current protection | 400 A |
| redundant | No |
| colour | White |
|---|---|
| height | 197 cm |
| width | 105.2 cm |
| depth | 85.4 cm |
| net weight | 724 kg |
| USB compatible | No |
| network frequency | 40...70 Hz |
|---|---|
| input voltage limits | 250...600 V adjustable 320...456 V 380 V 320...480 V 400 V 320...498 V 415 V |
| maximum input current | 328 A |
| switching current capacity | 400 A |
| max short time withstand current | 65 kA |
| input harmonic distortion | Less than 3 % for full load |
| input protection type | GL fuse |
| inrush current | 200 A peak |
| load power factor | 0.5 leading to 0.5 lagging |
| Input Power Factor at Full Load | 1 |
| Maximum configurable power in W | 180 kW |
|---|---|
| harmonic distortion | Less than 2 % |
| output frequency | 50/60 Hz +/- 1 Hz sync to mains 50/60 Hz +/- 1 Hz unsynchronised |
| crest factor | Unlimited |
| Wave type | Sine wave |
| output voltage tolerance | +/- 1% static and +/- 3% at 100% load step |
| output harmonic distortion | < 2% linear load and < 3% non-linear load |
| output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| neutral output current | 289 A |
| bypass type | Built-in static bypass |
| Maximum configurable power in VA | 200 kVA |
| product certifications | C-Tick CE RCM |
|---|---|
| standards | EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 IBC 2012 and CBC2013 to Sds=2.02g ISTA 2B OSHPD UL 1778 |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % |
| operating altitude | 0...3333 ft |
| ambient air temperature for storage | -25…55 °C |
| storage Relative Humidity | 0…95 % |
| storage altitude | 0.00…14999.82 m |
| acoustic level | 65 dBA |
| heat dissipation | 24570 Btu/h |
| IP degree of protection | IP20 |
| number of battery filled slots | 0 |
|---|---|
| battery voltage | 480 V |
| discharge battery voltage | 384 V |
| max current discharge | 393 A |
| Battery power in VAH | 0 VAh runtime |
| extended runtime | 0 |
| free slots | 2 |
|---|---|
| control panel | 7" touch screen display |
| alarm | Audible and visible alarms prioritized by severity |
| Emergency power off | Yes |
| Package 1 Weight | 770 kg |
|---|---|
| Package 1 Height | 215.6 cm |
| Package 1 width | 149 cm |
| Package 1 Length | 106 cm |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
