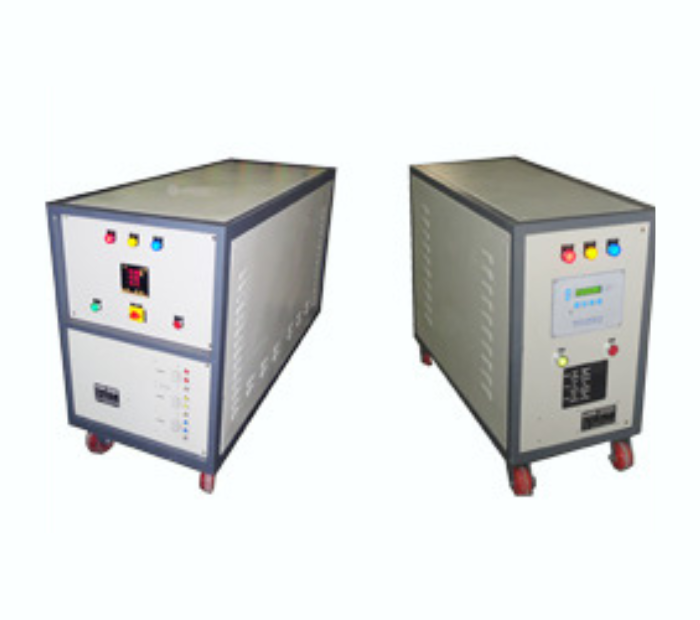

Servo Stabilizer

Servo Stabilizer is the equipment which provides constant voltage output in range of +/-1% variation. There is always voltage variation in Two type of electric power supply i.e. 230V in Single Phase and 415V in 3 Phase. This voltage variation damages the electrical and electronics equipment. Only Servo Stabilizer provides constantly regulated and fixed voltage power supply and enhance the life of your equipment protected with Servo Stabizer.

We have Servo Stabilizer range from 2 KVA to 500KVA.

Categories: Power Conditioning Equipments
Availability: In stock

Description

Key Features

Protection

Over Voltage Protection

Under Voltage Protection

Single Phase Preventer

Phase Reversal

Preventer Short Circuit Protection

Dimmers

Vertical Type Dimmers for smooth operation and faster correction. Low maintenance because of vertical design as dust accumulation and Cabon on the surface of dimmer is very less compared to horizontal Dimmers.

MS Cabinet

Powder coated spacious pipe structure design in MS cabinet with wheels for smooth movement and maintenace

Display Indication

Trip Indication for individual phase for both Undervoltage and overvoltage conditions

VIP Indicationn for Voltage, Current, and Frequency for all phases of input and output

InLow or InHigh voltage indication

Operational Switches

Push Button Switch for easy start of stabilizer output

Bypass switch is provided to get the power supply from the mains in case of the failure of the Servo Stabilizer.

Technical Specifications

(2 kVA to 100kVA - Above 100kVA to be consulted)

1.	Input voltage range 3-phase:	360-460, 340-480, 300-500
2.	Input voltage range 1-phase:	160-270, 180-280, 130-260
3.	Output voltage range 3-phase:	415, 400, 380
4.	Output voltage range 1-phase:	240, 230, 220
5.	System construction :	Unbalanced Type
6.	Output voltage regulation:	+/- 1%
7.	Overload capacity:	120%
8.	Correction speed:	35 v/sec ,70 v/sec,110 v/sec ( optional with D.C. motor )
9.	Wave form distortion:	Nil
10.	Output wave form:	True reproduction of input
11.	Cooling:	Natural air-cooled up to 125 kva
12.	Modes of system:	Both auto or manual
13.	System construction:	As per IS 9815-1994

DIMENSIONS

Sr.No.	Capacity	W	H	D
1.	5 KVA	660	350	400
2.	10 KVA	660	400	680
3.	15 KVA	660	400	680
4.	20 KVA	660	400	680
5.	25 KVA	650	520	715
6.	30 KVA	850	520	770
7.	35 KVA	850	520	770
8.	40 KVA	850	520	770
9.	50 KVA	850	520	770
10.	60 KVA	1000	600	800
11.	75 KVA	1000	600	800
12.	80 KVA	1000	600	800
13.	90 KVA	1000	600	800
14.	100 KVA	1000	600	800
