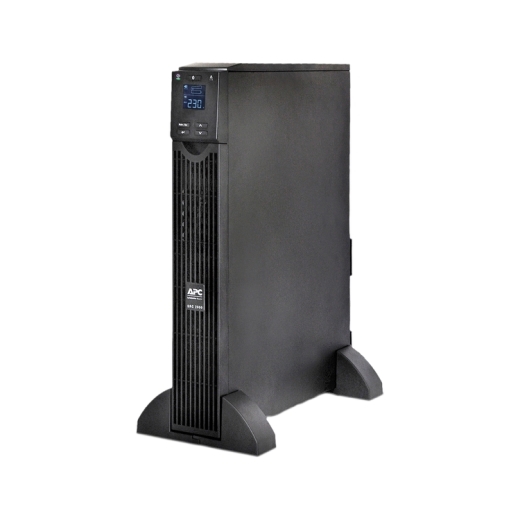

SRC2KUXI Smart-UPS On-Line Features & Benefits
Key Features
- Automatic internal bypass
Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Excellent footprint
Small UPS footprint provides maximum usage of valuable electrical room floorspace
- Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Generator compatibility
Allows you to recharge your battery while on generator power.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Intelligent Battery Charging
Microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life.
- Intelligent Card Slot
Customize UPS capabilities with management cards.
- LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- Serial connectivity
Provides management of the UPS via a serial port.
- Sine wave output
Eliminates humming and heat generated when powering tube lights and fans
- Wide input voltage range
Designed for harsh electrical environments to save battery life.
Low operating and maintenance costs with proven reliability and intelligent battery management .
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Avoids costly power problems by keeping your IT equipment and data protected and available .
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Save time with easy and convenient remote/network accessibility.
Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Key Benefits
Availability
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Scalable runtime
Allows additional run time to be quickly added as needed.
Adaptability
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Serviceability
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Protection
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Manageability
LED status indicators
Quickly understand unit and power status with visual indicators.
Intelligent Card Slot
Customize UPS capabilities with management cards.
Serial connectivity
Provides management of the UPS via a serial port.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Technical Specifications
| Main Input Voltage | 230 V |
|---|---|
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| rated power in W | 1600 W |
| rated power in VA | 2000 VA |
| nb of power socket outlets | 2 IEC 60320 C13 |
| output connector type | Hard wire 3-wire (H N + E) 1 |
| number of cables | 1 |
| battery type | External battery system |
| provided equipment | Installation guide Smart UPS signalling RS-232 cable User manual |
| Number of power module free slots | 0 |
|---|---|
| Number of power module filled slots | 0 |
| redundant | No |
| colour | Charcoal |
|---|---|
| height | 8.5 cm |
| width | 43.2 cm |
| depth | 48.3 cm |
| net weight | 10.5 kg |
| mounting preference | No preference |
| mounting mode | Rack-mounted with kit |
| two post mountable | 0 |
| USB compatible | No |
| network frequency | 40...70 Hz |
|---|---|
| number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| input voltage limits | 140...280 V |
| load power factor | 0.8 |
| Maximum configurable power in W | 1600 W |
|---|---|
| harmonic distortion | Less than 3 % |
| output frequency | 50/60 Hz +/- 3 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised |
| crest factor | 3 : 1 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| output harmonic distortion | < 3% linear load |
| bypass type | Built-in bypass |
| efficiency | 92 % (full load) |
| Maximum configurable power in VA | 2000 VA |
| Transfer time | 4 ms typical |
| number of battery filled slots | 0 |
|---|---|
| number of battery free slots | 0 |
| additional information | 72V. SMF or Flooded battery compatible. Internal charger 2A - 13A programmable Configurable for 220 : 230 or 240 nominal output voltage |
| Battery power in VAH | 0 VAh runtime |
| extended runtime | 1 |
| control panel | Multifunction LCD status and control console |
|---|---|
| alarm | Alarm when on battery : distinctive low battery alarm |
| noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|---|
| Package 1 Weight | 13.5 kg |
|---|---|
| Package 1 Height | 26.5 cm |
| Package 1 width | 57.5 cm |
| Package 1 Length | 58.5 cm |
| Warranty | 2 years repair or replace |
|---|
