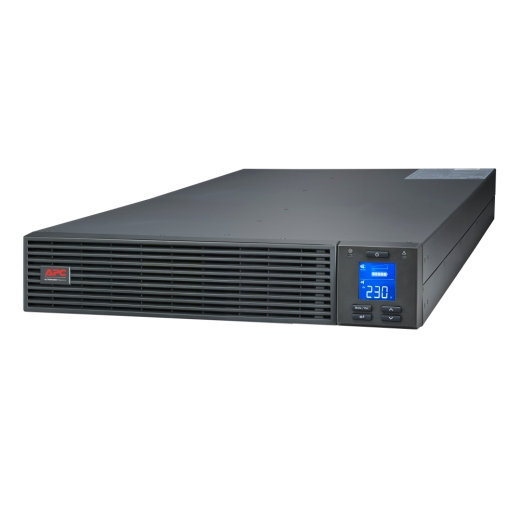

APC Easy UPS On-Line SRV 5000VA RT 230V India - No Battery

SRV5KUXI-IN Easy UPS On-Line Features & Benefits

Key Features

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

High efficiency

High efficiency rates that remain stable even at lower operating power levels

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Management Software

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Management Software

Allows you to easily monitor your utility power and manage your UPS.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

• Automatic internal bypass

Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.

• Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

• ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

• Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

• Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

• Intelligent Card Slot

Customize UPS capabilities with management cards.

• LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

• Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

• Serial connection

Use your PC to access additional power protection and management features for your UPS via a serial port.

• USB connection

Use your PC to access additional power protection and management features for your UPS via a USB Port.

Key Benefits

Serviceability

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Manageability

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Serial connectivity

Provides management of the UPS via a serial port.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Intelligent Card Slot

Customize UPS capabilities with management cards.

Availability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Technical Specifications
