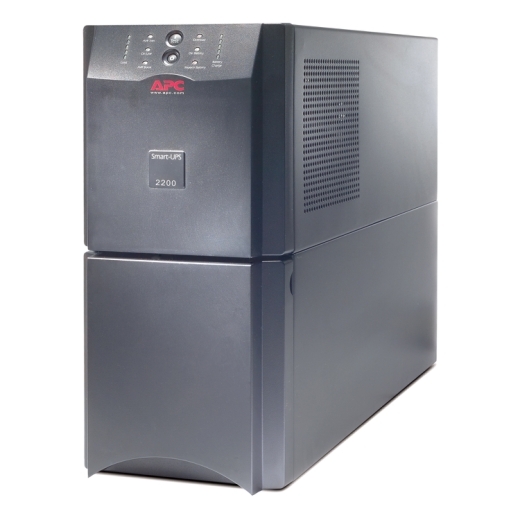

SUA2200I-IND Features & Benefits
Key Benefits
Manageability
Audible alarms
Provides notification of changing utility power and UPS conditions.
Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
LED status indicators
Quickly understand unit and power status with visual indicators.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Serial connectivity
Provides management of the UPS via a serial port.
Availability
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adaptability
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Serviceability
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Resettable circuit breakers
Enables a quick recovery from overload events.
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Key features
Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Technical Specifications
| Main Input Voltage | 230 V |
|---|---|
| Main Output Voltage | 230 V |
| rated power in W | 1980 W |
| rated power in VA | 2200 VA |
| Input Connection Type | India 3-pin 16A |
| nb of power socket outlets | 1 IEC 60320 C19 6 India 3-pin 6A |
| battery type | Lead-acid battery |
| provided equipment | User manual USB cable |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| redundant | No |
| height | 43.2 cm |
|---|---|
| width | 19.6 cm |
| depth | 54.4 cm |
| net weight | 50.8 kg |
| mounting preference | No preference |
| mounting mode | Not rack-mountable |
| two post mountable | 0 |
| USB compatible | No |
| plug standard | India 3-pin 16A |
|---|---|
| input voltage limits | 151...302 V adjustable |
| network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| harmonic distortion | Less than 5 % |
|---|---|
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| Transfer time | 2 ms typical |
| UPS type | Line interactive |
| Wave type | Sine wave |
| efficiency | 90 % (full load) |
| output frequency | 47...53 Hz for 50 Hz nominal sync to mains |
| product certifications | BIS |
|---|
| acoustic level | 45 dBA |
|---|---|
| heat dissipation | 275 Btu/h |
| operating altitude | 0...10000 ft |
| ambient air temperature for operation | 0…40 °C |
| ambient air temperature for storage | -15…45 °C |
| storage altitude | 0.00…15240.00 m |
| relative humidity | 0…95 % |
| storage Relative Humidity | 0…95 % |
| additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| extended runtime | 0 |
| number of battery filled slots | 0 |
| number of battery free slots | 0 |
| Battery recharge time | 3 h |
| battery life | 2…4 year(s) |
| Battery power in VAH | 816 VAh runtime |
| battery charger power | 271 W rated |
| alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
|---|---|
| control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Surge energy rate | 365 J |
|---|---|
| noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Package 1 Weight | 64.86 kg |
|---|---|
| Package 1 Height | 70 cm |
| Package 1 width | 38 cm |
| Package 1 Length | 76 cm |
| Warranty | 2 years repair or replace |
|---|
