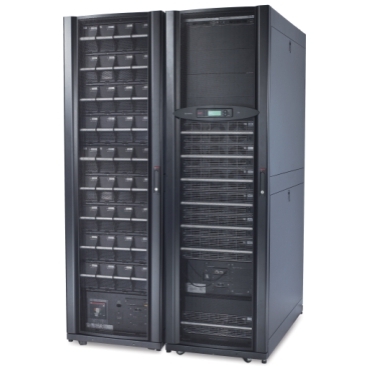

Key Features
• Dual mains input/output : Allows for top or bottom feed connection to two separate power inputs for increased availability.
• Modular power distribution: Adapt the modular power distribution solution to meet changing demand with easy-to-install power distribution modules. Monitor breaker positions and simplify power management with output metering and branch current/circuit monitoring.
• High-efficiency (95%) power module — down to 30% loading Independently verified by TÜV, these high-efficiency double conversion power modules reduce power and cooling costs, saving you money while delivering the optimal power protection your data center deserves
• LCD display interface: Offers a clear text-based overview of alarms, status data, and system configuration options.
• Main intelligence module and redundant intelligence module Back-up for the main intelligence module provides the maximum possible availability for your system.
• Network management card Provides UPS status and event notification. Two SmartSlotTM positions support dry contact, building management system (modbus/Jbus), and additional network management cards.
• Built-in static bypass switch: The swappable static bypass switch transfers the load to utility power without interruption in case of heavy overload or faulty conditions, and ensures that even in 125% overload conditions, the data center remains operational.
• Swappable battery module: Connected in parallel for increased availability, these swappable battery modules feature advanced battery monitoring and temperature-compensated battery charging that extends battery life. Additional battery frames can be added for longer run times.
• High-density footprint: The all-in-one solution requires front-facing access only, which provides more flexibility on where you place the space-saving UPS and enables the Symmetra PX 48 kW to be put anywhere, even against a wall — which leaves more room for IT equipment
• Modular power distribution (optional): Adapt the modular power distribution solution to meet changing demand with easy-to-install power distribution modules. Monitor breaker positions and simplify power management with output metering and branch current/circuit monitoring
Key Benefits
Availability
• Swappable power, battery, and intelligence modules
• N+0 or N+1 module-level redundancy
• Toolless module replacement
• Self-diagnosing, field-replaceable modules
• Redundant intelligence module
• Swappable static bypass switch
Total cost of ownership
• TÜV-verified high efficiency (95% at 30% load)
• Unity power factor corrected
• Integrated monitoring of modular batteries
• One-year warranty and startup service included
Scalability
• Scalable 16 kW power modules
• Adaptable 16 to 96 kW power capacity
• Extended battery runtime available
Manageability
• Dual-mains input, top or bottom feed
• Embedded network management
• Remote access over HTTP, HTTPS, Telnet, SSH, SNMPv1&3
• Local access at PowerViewTM display interface
• Configurable alarm notifications
• StruxureWareTM Data Center Expert compatible
Technical Specification
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Main Output Voltage | 230 V 400 V 3 phases |
| rated power in W | 96 kW |
| rated power in VA | 96 kVA |
| output connector type | Hard wire 5-wire (3P + N + E) 1 |
| battery type | VRLA |
| provided equipment | Network management card Start-up service User manual |
| bypass wiring configuration | 5 wire (3P + N + E) |
|---|---|
| max bypass input current | 250 A |
| bypass current protection | 250 A |
| Number of power module free slots | 4 |
| Number of power module filled slots | 6 |
| redundant | Yes |
| colour | Black |
|---|---|
| height | 199.1 cm |
| width | 120 cm |
| depth | 107 cm |
| net weight | 1748 kg |
| USB compatible | No |
| network frequency | 40...70 Hz |
|---|---|
| number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| input voltage limits | 340...477 V |
| maximum input current | 197 A |
| switching current capacity | 315 A |
| max short time withstand current | 30 kA |
| input harmonic distortion | Less than 5 % for full load |
| load power factor | 0.5 leading to 0.5 lagging |
| Input Power Factor at Full Load | 0.99 |
| Maximum configurable power in W | 160 kW |
|---|---|
| harmonic distortion | Less than 2 % |
| output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| output voltage tolerance | +/- 1% static and +/- 5% at 100% load step |
| output harmonic distortion | < 2% for 0 to 100% linear load and < 6% for full non-linear load |
| output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| required output current protection | 250 A |
| neutral output current | 240 A |
| bypass type | Built-in static bypass |
| efficiency | 95 % (full load) 95 % (half load) 94 % (in battery operation) |
| Maximum configurable power in VA | 160 kVA |
| product certifications | EUROBAT |
|---|---|
| standards | EN 50091-1 EN/IEC 62040-1-1 EN/IEC 62040-2 EN/IEC 62040-3 ISO 14001 ISO 9001 VFI-SS-111 |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % |
| operating altitude | 0...3333 ft |
| ambient air temperature for storage | -15…40 °C |
| storage Relative Humidity | 0…95 % |
| storage altitude | 0.00…15240.00 m |
| acoustic level | 63 dBA |
| heat dissipation | 17244 Btu/h |
| NEMA degree of protection | NEMA 1 |
| IP degree of protection | IP20 |
| number of battery filled slots | 9 |
|---|---|
| number of battery free slots | 0 |
| Battery recharge time | 3.5 h |
| number of battery replacement quantity | 4 |
| additional information | Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage |
| battery voltage | +/- 192 V (split battery referenced to neutral) |
| discharge battery voltage | +/- 154 V |
| overcurrent protection | 320 A |
| maximum short-circuit current | 6 kA |
| max current discharge | 332 A |
| battery overload operation | 10 minutes at 125% and 60 seconds at 150% |
| battery charger power | 8862 W rated |
| battery design life | 5…8 year(s) |
| Battery power in VAH | 31104 VAh runtime |
| battery option | SYCFXR9-9 1 62208 VAh SYCFXR9-9 2 93312 VAh SYCFXR9-9 3 124416 VAh |
| extended runtime | 1 |
| free slots | 2 |
|---|---|
| preinstalled device | Network management card with CAN |
| control panel | Multifunction LCD status and control console |
| alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency power off | Yes |
| Package 1 Weight | 1898 kg |
|---|---|
| Package 1 Height | 214 cm |
| Package 1 width | 169.6 cm |
| Package 1 Length | 121 cm |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
