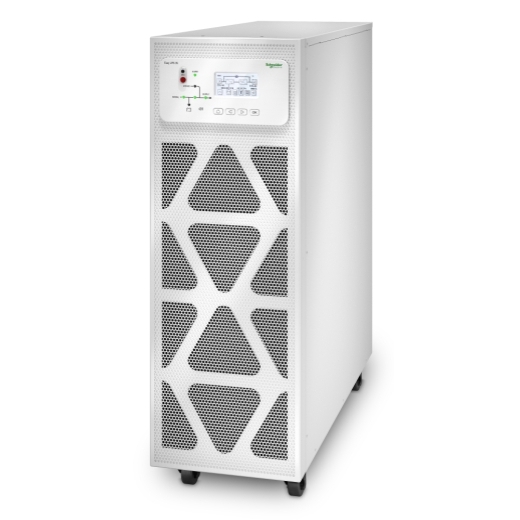

E3SUPS40KH Easy UPS 3S Features & Benefits
Convenience
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Protection
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Replaceable dust filters
protect the UPS in harsh environments.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Technical Specifications
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| rated power in W | 40 kW |
| rated power in VA | 40 kVA |
| provided equipment | Dust filter Installation guide |
| colour | White (RAL 9003) |
|---|---|
| height | 77 cm |
| width | 25 cm |
| depth | 90 cm |
| net weight | 70 kg |
| USB compatible | Yes |
| maximum input current | 73 A |
|---|---|
| load power factor | 0.9 leading to 0.9 lagging |
| Input Power Factor at Full Load | 0.99 |
| input voltage limits | 304...477 V |
| network frequency | 45...65 Hz |
| Maximum configurable power in VA | 40 kVA |
|---|---|
| Maximum configurable power in W | 40 kW |
| output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| harmonic distortion | Less than 3 % |
| output harmonic distortion | < 3% linear load |
| output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| UPS type | Double conversion online |
| bypass type | Built-in maintenance bypass |
| crest factor | 3 : 1 |
| product certifications | CE EAC RCM |
|---|
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| operating altitude | 0...3281 ft |
| ambient air temperature for storage | -15…40 °C |
| storage Relative Humidity | Non-condensing 0…95 % |
| storage altitude | 0.00…14999.82 m |
| acoustic level | 63 dBA |
| heat dissipation | 1880 Btu/h |
| IP degree of protection | IP20 |
| battery type | External battery system |
|---|---|
| maximum short-circuit current | 10 kA |
| number of battery filled slots | 0 |
| number of battery free slots | 0 |
| Package 1 Weight | 86 kg |
|---|---|
| Package 1 Height | 101.5 cm |
| Package 1 width | 40 cm |
| Package 1 Length | 105 cm |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
